Galvanized Clear View Anti Theft Anti Cut Fence 358 Anti Climb High Security Welded Wire Mesh Fence Panels

Ask Lasest Price
Brand Name :	Yuanmai
Model Number :	YM—06
Certification :	ISO 9001
Price :	$27 -$68/ Piece
Payment Terms :	L/C, T/T
Supply Ability :	1800 Set/Sets per Week
Delivery Time :	<20 work days

Add to Cart

Product Details
Company Profile

Galvanized Clear View Anti Theft Anti Cut Fence 358 Anti Climb High Security Welded Wire Mesh Fence Panels

358 Anti Climb Security Fence

358 Anti Climb Security Fence The mesh size of 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm. 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.

Application

As an anti-climb & anti-cut through barrier, 358 welded wire extra
high security fence is designed with maximum security in mind.
It is ideally suitable for electronic alarm and detection systems,
fencing in prisons, military sites, and airports, industrial and
commercial properties, warehouses, power plants, Offshore
petrochemical facilities,seaport perimeter laboratories, secure
hospitals, schools, parks, leisure and recreational areas. 358
fence will give them a long lasting and secure perimeter protection
with attractive appearance. Generally, 3.60 m height fence is used
in schools, parks, leisure and recreational areas, 5.20 m height
fence widely used in prison and military establishments.

Feature

1.Anti-climb:Due to the high-density mesh of the 358 guardrail, it is impossible
to grasp the hands and feet, which plays a very good protection
against climbing.
2.Anti-shear:the wire diameter is large, the mesh is dense, making the wire cut
useless.
3.Beautiful appearance: the mesh surface is flat, and the perspective is higher.

Detail

Specification of 358 Security Fence
Mesh Opening	12.7x76.2mm ( 0.5'' x 3'' )
Wire Diameter	3/3.5/4mm
Panel Height	1.2m-6m ( Suggest size : 2m/2.4m/3m )
Panel Width	2.0-3.0m ( Suggest size : 2m/2.2m/3m )
Post Type	Square Post(SHS) : 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm
Post Type	Rectangular Post(RHS) : 40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm 80x100x2.0/2.5/3.0mm
Surface Treatment	hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color	RAL 6005 green, RAL 7016 gray, All RAL color can be customized
Note	The fence can be customized according to your required if above specification is not satisfied with you
Contact Now	Most of the panels are customized, please let us know your request.

358 high security fence is a kind of high strength and high
security fence. 358 high security fence means fence panel with 3''
×0.5'' mesh opening and 8 gauge wire diameter. The mesh opening is
so small that people can't put fingers into it and climb it. And the 8 gauge wire is so strong that can't be cut by bolt cutters and
wire cutters. 358 high security fence is also usually used with barbed wire, razor wire and wall spikes to further enhance the
security. 358 high security fence with higher security can be used in prison, borderline, power plant and some places that
require strong security and privacy. In addition, our products with galvanized or PVC coating surface treatment has good corrosion
resistance.

Determine how tall your fence is. If the fence is 4 feet, the steel
posts will need to be 6 feet. The posts will need to be at least 2
feet taller than your fence. When you install your fence, using the
metal tails to pin up the wire to the post at the top, the middle
and the bottom. Once the mesh panel is pinned up, pin up the next
mesh panel. You should splice two mesh panels together.And then
cover a plastic caps for posts to improve their anti-corrosion
property. Especially, you should notice that when installing the
358 mesh fence, you should overlap 75 mm of two panels or overlap
one opening distance to maintain integrity of protection.

Product Paramenters

Galvanized Clear View Anti Theft Anti Cut Fence 358 Anti Climb High Security Welded Wire Mesh Fence Panels

Mesh opening :	50x100mm,50x150mm ,50x200mm ,55x200mm ,75x150mm ,etc.
Wire thickness :	3.0mm ,3.5mm ,4.0mm ,4.50mm ,5.00mm
Panel width :	2.0m ,2.50m ,2.9m
Panel height :	630mm,830mm,1030mm,1230mm,1430mm,1530mm,1630mm,1730mm,1830mm,1930mm,2030mm,2230mm,2430mm
Round post :	48x1.5/2.0mm60x1.5/2.0mm
Square post :	50x50x1.5/2.0mm60x60x1.5/2.0mm 80x80x1.5/2.0mm
Rectangular Post :	40x60x1.5/2.0mm40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm

Our Advantages

Anti-climbing.
Smaller openings.
Therefore, human's fingers and toes can't go through.
Anti-cutting.
Robust wires and welded joints make it difficult for wire cutters
and bolt cutters to cut.
Versatility.
Many different applications, such as schools, parks, leisure and
recreational areas.

Durability 358 mesh fence, made from high quality steel wire and
then galvanized or polymer powder coating, ensures a long service
life.
High strength welded at each intersection.
Mesh fence is configured to provide maximum visibility, especially
emergency and electronic detection systems need to use it.
Can be stepped to accommodate sloping ground.
Clamp bar fixings.
Custom designs available.

Packing & Delivery

Company profile

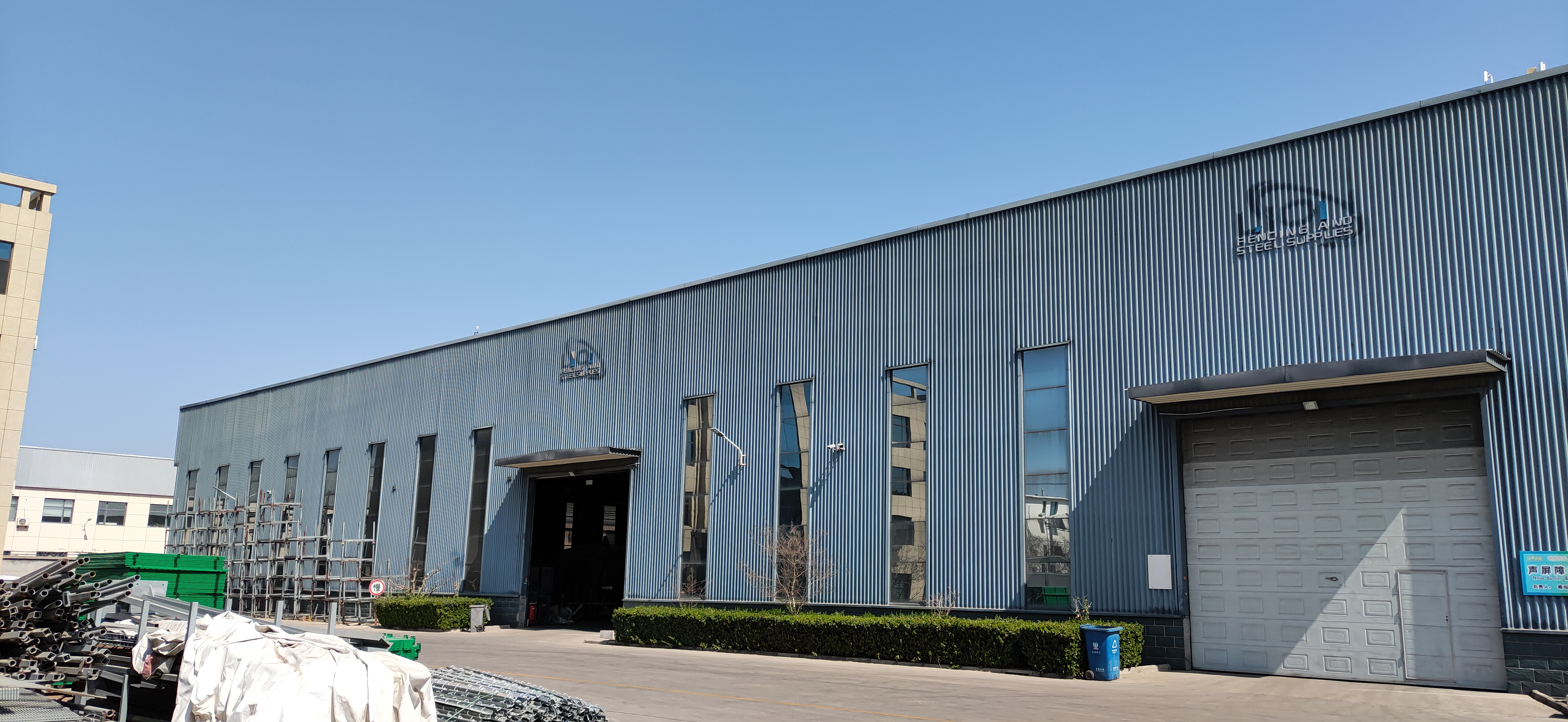

Anping Yuanmai Hardware & Wire Mesh Products Co., Ltd. is a
professional manufacturer of wire mesh fences, Our products include
chain link fences, farm fences, SNS protective mesh fences,
framework fences, temporary fences, 358 High Security Fences, curvy
welded mesh fences, prison fences, airport fences, ornamental
fences, iron fences, palisade fences, double loop fences and Euro
fences. Tailong also supplies Hesco Bastions, reinforcing mesh,
gabions, store cages and decorative wire mesh. Our factory located
in Anping County, which is called "the Native land of Wire Mesh" in
China.
元麦 supplies high quality fences and related products for a variety
of applications. We are committed to providing customers with good
quality products, competitive prices and excellent services. Our
products are widely used in road, railway, airport, residence
district, seaport, garden and other fields.
Selling well in all cities and provinces around China, our products
are also exported to the USA, Australia, Germany, the UK, Japan,
Singapore, Korea and so on. To learn more about what we can do for
you, contact us at any time. We look forward to establishing a good
and long-term business relationship with you.
