Product Description
Palisade fence is one kind of most popular choice for the area that
requiring a higher level of security and vandal resistance, It is
widely used in the whole world. The fence is normally include
pales, horizontal rails, Post and then installed together with fish
plate and security screws. The finish we always do are Hot dipped
galvanized and Polyester powder coated. This is the D section pale
for palisade fence. By now, we have shipped the palisade fence to
Europe, Middle east, Africa as well as Australia.
One of the benefits of palisade fence is its visual deterrent effect. The pointed stakes create a clear
boundary that sends a message to potential intruders that the
property is protected and secure. In addition, palisade fences are
difficult to climb over and can be used in a variety of settings,
including residential, commercial, and industrial properties.
Features:
• Easy installation
• With a high cost level compare with other type fence
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
• Strong and high security, it is possible of putting concertina
razor wire at the top
Applications: electricity providers and regional networks, water industry,
telecom industry, police and law enforcement, railway line/track
protection, motorways and highway protection, schools, colleges and
universities, research laboratories
Product details
Palisade fence pale type
The palisade fence pale can be divided into corrugated pale and
angle pale. The corrugated pale has W type and D type with
different structure surface.
- D section pales. Working with long bolts, are designed for boundary delineation
requiring low to medium security and damage resistance.
- W section pales. with higher inherent strength and better vandal resistance, are
the most used type to provide effective high security and extra
protection. Fastened by short bolts, the W type palisade pales are
flush against the horizon rails without flexibility.
- Angle steel pales. Bolted or welded to horizon fence rails, are suitable for general
purpose applications, such as residential estates protection.

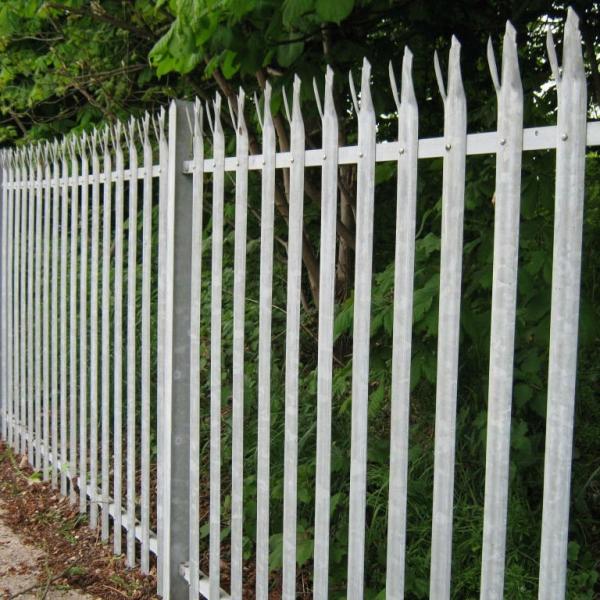

The common types of palisade fence are W pale and D pale type
palisade fencing with three point on the top of the fence. Though
the price of the two type is same, but the W pale type palisade
fencing is more widely used type than the D pale type, additional,
it is more beautiful. So we suggested our customer to choose the W
pale type.
Product specification
Technical for straight type:
Panel & post
| Pale type: | W |
| Pale size: | 68mm |
| Pale thickness: | 2.0mm, 2.5mm, 3.0mm |
| Height: | 1800, 2100, 2400, 3000mm |
| Width: | 2750mm |
| Angle rail: | L50x50x5.0mm, L50x50x6.0mm |
| Post: | IPE100x55, IPE120x74, SHS80x80x3.0, SHS100x100x4.0 |
| Pale section: | Triple point, single point, round point |
| Finish: | HDG+PP, PRE-HDG+PP, HDG |
Accessories:
• Fish plate
• Bolts and nuts
• Single arm, Y arm
• Razor wire and barbed wire
Packing and shipping
Company profile
Anping Yuanmai Wire Mesh Products Co., Ltd. is a professional
manufacturer of wire mesh fence, located in Anping County, which is
called “the Native land of Wire Mesh” in China. Tailong supplies
quality fence and related products for a variety of applications.
Our technological expertise and commitment to providing our
customers with consistent quality fencing products enable us to
become a long term partner for your business.
